2~8℃ Pharmacy Refrigerator NBC-5L1006

2~8℃ Pharmacy Refrigerator NBC-5L1006

NBC-5L1006 Pharmacy Refrigerator Introduction Safer Storage Superior Temp. uniformity&Precise control●Micr
Product Details

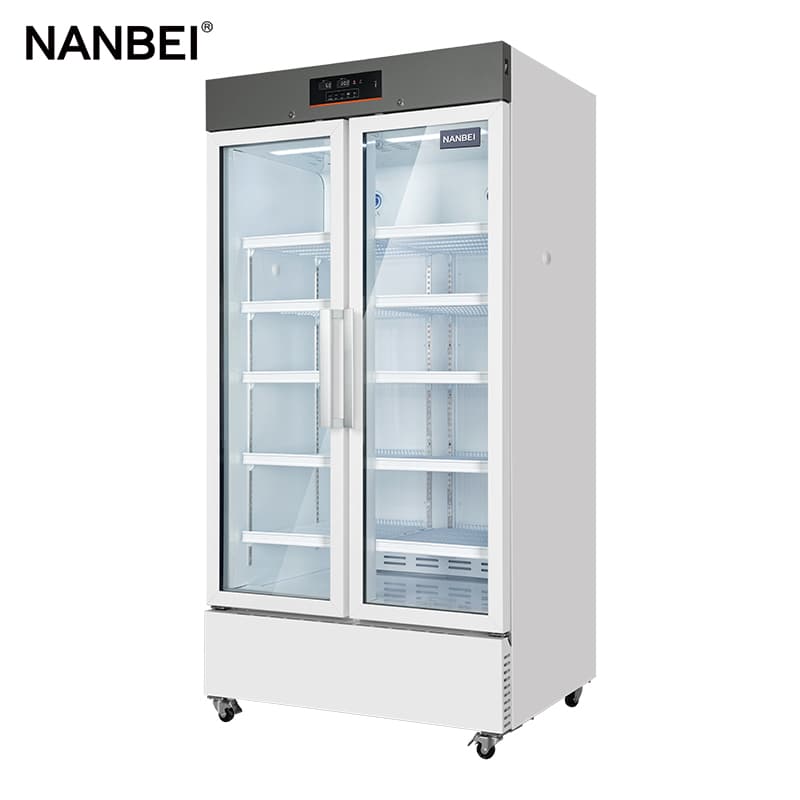

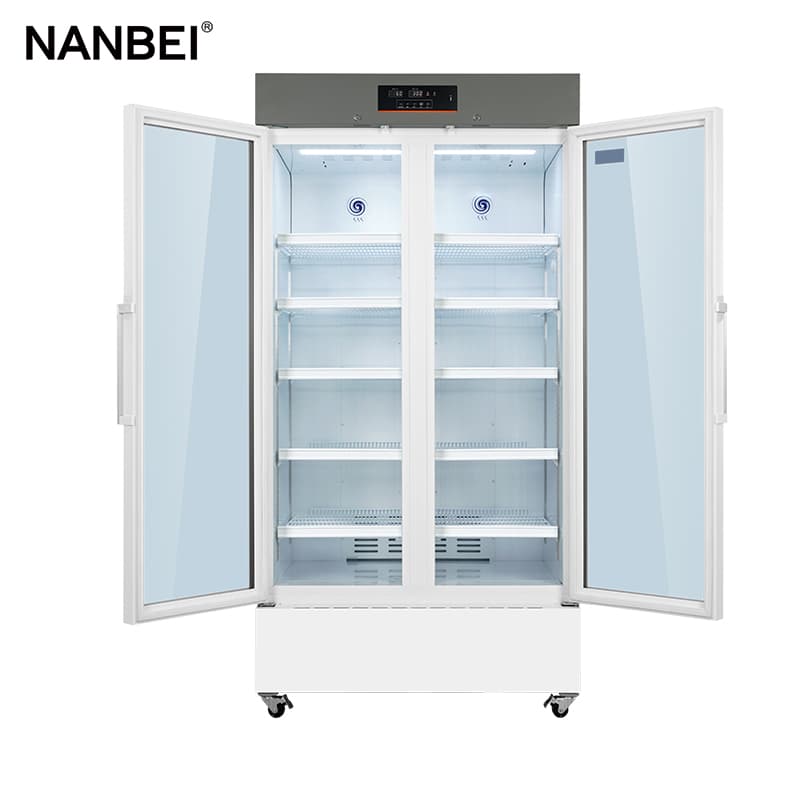

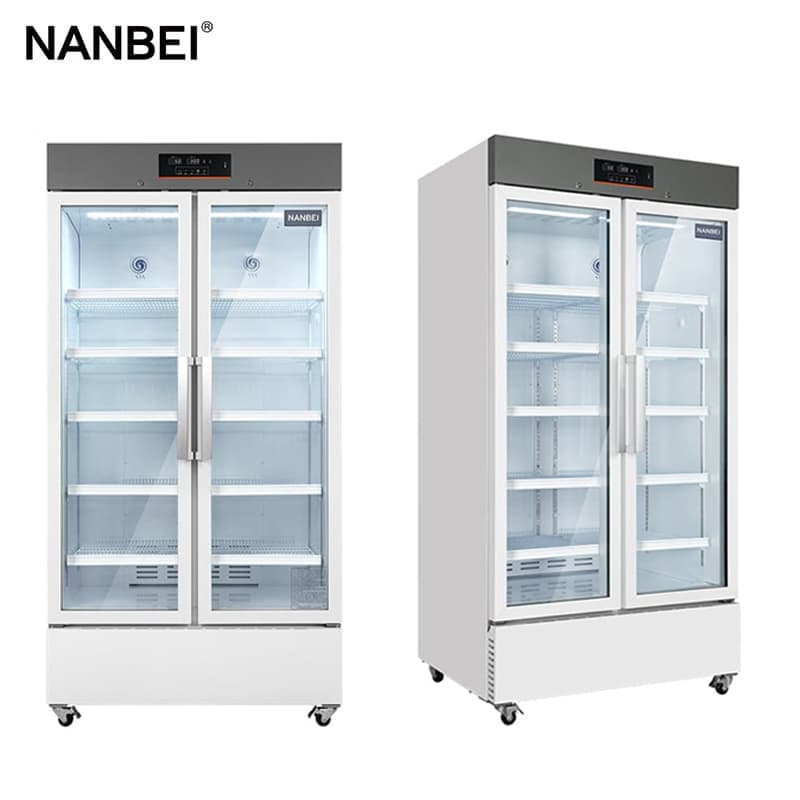

NBC-5L1006 Pharmacy Refrigerator


Introduction

Safer Storage Superior Temp. uniformity& Precise control

●Microcomputer temperature control.

●Dual display, temperature & Humidity.

●Temperature accuracy 0.1℃

●Temperature variation ≤2℃.

●Temperature uniformity ± 1℃

●USB port, temp. record traceable.

●Backup battery.

●Audible & visual alarm systems.

Reliable & stable performance

●International brand compressor.

●Top cooling system.

●DC turbo fan. Built-in air duct.

●Forming technology. Micro-channel condenser .

●D+ heat exchange technology,

●High efficiency. and energy saving.

Humanized Design Friendly for daily use

●Electric heating glass door.

●Door self-close.

●Adjustable shelves with label  holder.

●Porthole.

●Adjustable LED light.

●Wide voltage range design.


Features

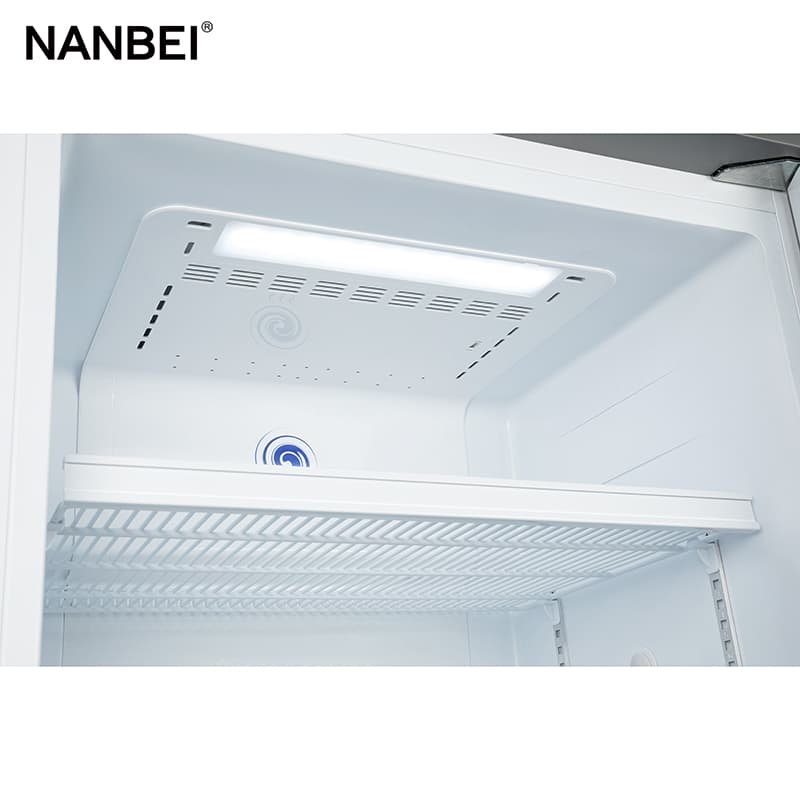

Top cooling system

Strong cooling airflflow from the top to the bottom, works as an air curtain to block the external hot air from entering the refrigerator when door is opening, so as to  prevent the temperature in the cabinet from rising rapidly, also contributes better temperature uniformity performance.

●Improves temperature uniformity performance by 40%.

●Max interior temperature difffference  ±1℃.

●Prevent temperature rising rapidly when door is opening.

●Energy consumption 47% lower than similar sized normal pharmacy refrigerator .

DC Turbo Fan

●Decrease noise level by 8%.

●Integrated DC Turbo Fan works with smaller vibration and higher efficiency.

●Safer for daily use.

●No strong electric component in chamber, safer & more reliable.

Built-in air duct

Increase the effective interior space by 10%.

Less interior space occupancy.

Built-in air duct plus the Top cooling design, ensure temperature in the top of chamber is cool enough for storage.

Forming Technology

The  fourth generation foaming agent More uniform density, Better insulation, more energy-saving. More reasonable foaming layer design, larger interior storage  space.


Specification

NBC-5L1006

Storage Volume(L)

1006

Climate Class

N

Temperature Range(°C)

2~-8°C

Cooling Type

Forced air cooling

Defrost Mode

Auto

Voltage/Frequency(V/Hz)

220~240V/50~60Hz

Voltage/Frequency(V/Hz)

110V/60Hz

Cabinet Type

Upright

Door Type

LOW E glass with Electrical heating door

Refrigerant

R600a

External dimension (W*D*H mm)

1220*808*1920

Internal dimension (W*D*H mm)

1130*634*1354


Model Selection

Series

Under counter

2nd Generation

2nd Generation

2nd Generation

2nd Generation

2nd Generation

Item

Model No.

NBC-5L126

NBC-5L316

NBC-5L416

NBC-5L756

NBC-5L1006







Dimensions

Load capacity (40HQ)

48/162

71

47

38

21

Fridge Storage Volume(L)

126

316

416

756

1006

Product Dimensions

(mm)(wxdxh)

595*615*810

595*603*1920

690*653*1920

970*808*1920

1220*808*1920

Interior Dimensions

(mm)(wxdxh)

505*467*620

500*464*1343

595*514*1343

880*634*1354

1130*634*1354

Net/Gross Weight

43/48

78/90

88/100

140/170

220/260







Technical data

Cooling Type

Forced air cooling

Forced air cooling

Forced air cooling

Forced air cooling

Forced air cooling

Defrost type

No frost

No frost

No frost

No frost

No frost

Climate Class

N

N

N

N

N

Refrigerant/Amount(g)

R600a/26g

R600/36g

R600/36g

R600a/48g

R600a/60g

Compressor type

Fixed frequency

Fixed frequency

Inverter

Inverter

Inverter

Sensor Qty

3

6

6

6

6





Product Performance

Temperature Range

2 ~ 8℃

2 ~ 8℃

2 ~ 8℃

2 ~ 8℃

2 ~ 8℃

Temperature uniformity/°C

2

2

2

3

3

Temperature volatility/°C

2

2

2

2

2

Temperature Accuracy

0.1

0.1

0.1

0.1

0.1



Control

Controller

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Display

LCD display

LED

(Temperature&Humidity)

LED

(Temperature&Humidity)

LED

(Temperature&Humidity)

LED

(Temperature&Humidity)



Electrical data

Rated Current(A)

1

1.5

1.5

1.8

2.1

Rated Power(W)

75

190

260

320

350









Alarms

Power Failure Alarm

Y

Y

Y

Y

Y

Sensor Failure Alarm

Y

Y

Y

Y

Y

Environment Temperature Alarm

N

Y

Y

Y

Y

Door ajar Alarm

Y

Y

Y

Y

Y

High Temperature Alarm

Y

Y

Y

Y

Y

Low Temperature Alarm

Y

Y

Y

Y

Y

Remote Alarm

Y

Optional

Optional

Optional

Optional











Accessories

Shelves/Drawers Qty

2/1

5

5

10

10

Anti-condensation Door

LOW-E glass

Electrical heating

Electrical heating

Electrical heating

Electrical heating

Self-lock

Y

Y

Y

Y

Y

Label Card Holder

Optional

Y

Y

Y

Y

Cable Port

Y

Y

Y

Y

Y

Castors/type

N

4/Omni-directional

4/Omni-directional

4/Omni-directional

4/Omni-directional

USB

Optional

Y

Y

Y

Y

RS-485 Port

N

Y

Y

Y

Y

Printer

N

Optional

Optional

Optional

Optional

Backup Battery

Y

Y

Y

Y

Y

Backup Battery endurance

24h

24h

24h

24h

24h
